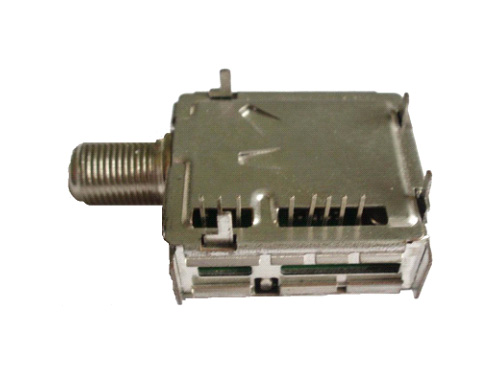

Detailed Product Description
Product features
1) 12c bus control
2) single 3.3v power supply
3) comply with ABS standard
4) horizontal type
5) Apply to international live telecast satellite STB
Parameter
Frequency range: 950MHz～2150MHz
Gain inequality: ≤7dB
RF AGC control range: ≥80dB
I/Q phase imbalance: ≤ 3deg
I/Q gain imbalance: ≤ 2dB
Standing-wave ratio: ≤2.5
Noise factor: ≤8dB
Local phase noise: ≤-75dBc/Hz（1kHz) | | NO. | Terminal Name | | 1 | TO LNB | | 2 | 3.3V | | 3 | I OUT | | 4 | Q OUT | | 5 | AGC | | 6 | CLK OUT | | 7 | SDA | | 8 | SCL |
|
