Application：

This type of connector is commonly used for antenna, cable television and satellite television installations.

Product performance:

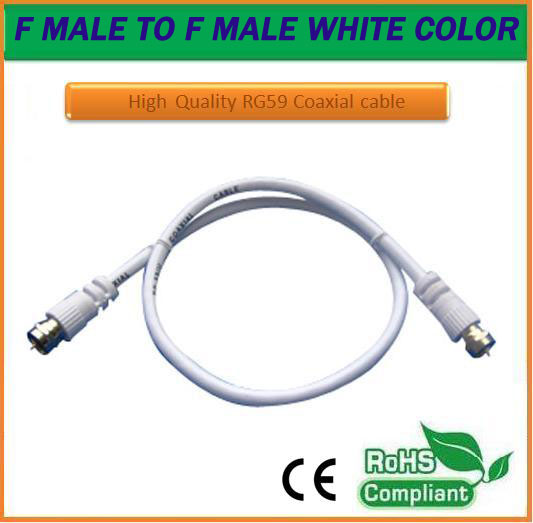

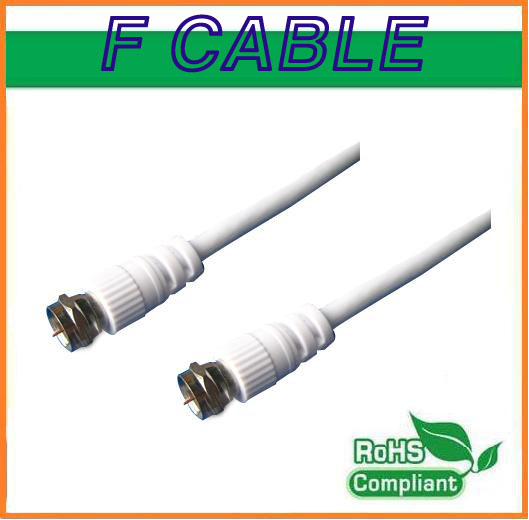

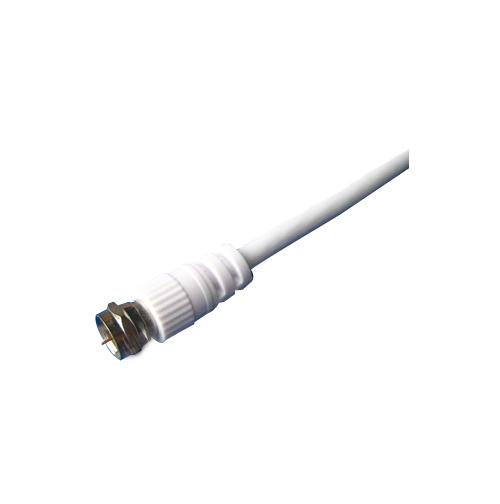

1.F PLUG:NICKEL PLATED, W/O Pin

2. CABLE: RG59 WHITE CABLE,(1/CCS0.643*FPE+2AL+64#/0.12AL.Mg)*1C

3. Contact Resistance: 30m Ohms Max
4.Voltage rating: AC/DV 125V
5.Current rating: AC/DV 1A
6.Withstanding Voltage: AC 250V/1 Min
7.Insulation resistance: 100M Ohms Min
8.Working Temperature: -25° ~+85°
9.Insertion Force: 35 N Max. Withdraw Force: 10 N Min

10 Impedance @200MHz: 75± 3 Ohm.
