Product features
· 12C bus control
· RF loopthrough amplify

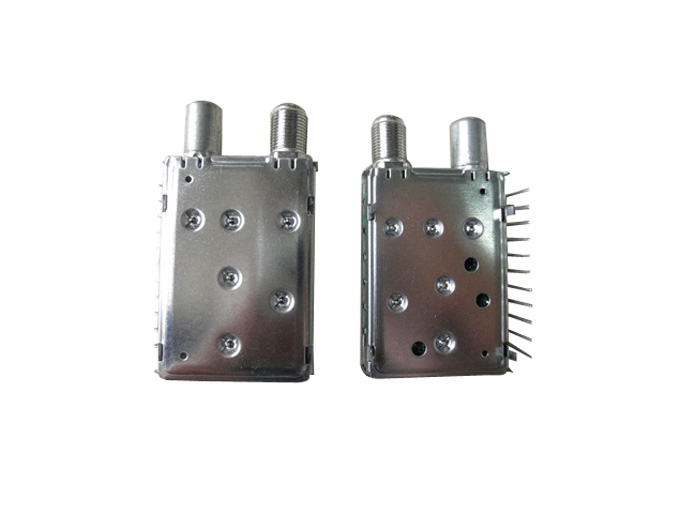

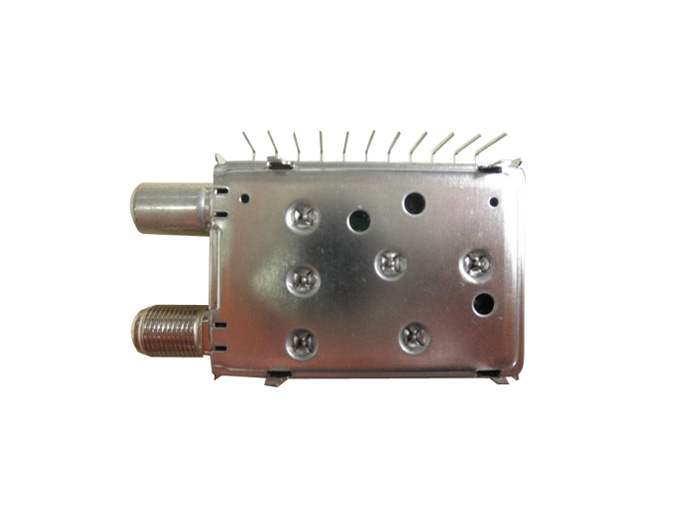

· Vertical and horizontal type install
Apply to: DVB-C STB

Parameter
Receive mode: DVB-C
Installation Method: Vertical Type, horizontal type, IEC plug and F plug
Frequency Range: 48MHz～858MHz
IF-FRE: 36MHz
Bandwidth: 8MHz
Radio frequency power gain: ≥44dB
Total power gain: ≥80dB
Tain inequality: ≤6dB
RF AGC control range: VHF≥50dB UHF≥40dB
Image Rejection： VHF≥55dB UHF≥50dB
Intermediate-frequency rejection ratio: ≥55dB
Standing-wave ratio: ≤7
Noise factor: ≤5dB
Local phase noise: ≤-65dBc/Hz（1kHz)
Structure size: 50mm*35mm*12mm
