Application：

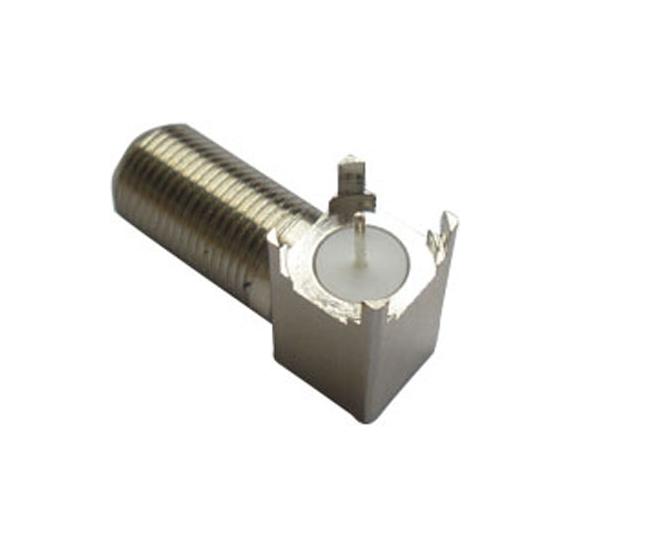

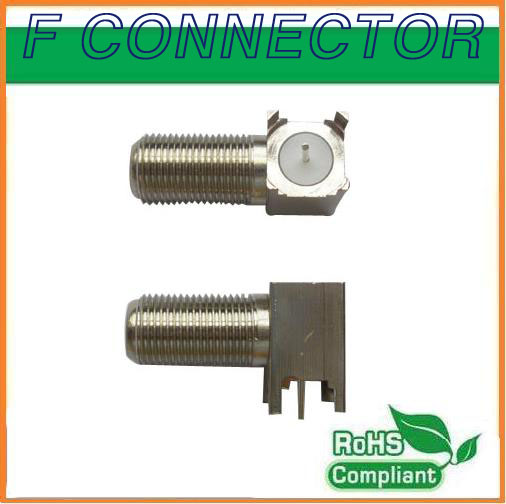

F Female R/A PCB Mount Type Connector.Primary applications are for cable television(CATV), set top boxes,and cable modems.All connectors comply with a 3/8-32 thread specification.
Product performance:
| Impedance | 75Ω |
| Frequency Range | DC~1GHz |
| Center conductor retention force | ≥0.2 N |
| Insulation resistance | ≥1000MΩ |
| Voltage Standing Wave Ratio | Straight ≤1.20 |
| Right angle ≤1.30 | |
| Durability(mating) | ≥500(cycles) |
| Body | Brass | Nickel plated |
| Pin contact | Brass | Gold or silver plated |
| Resilient contact | Tin bronze | Gold or silver plated |
| Insulator | PTFE or PE | |
| Crimp ferrule | Copper alloy | Nickel or gold plated |
