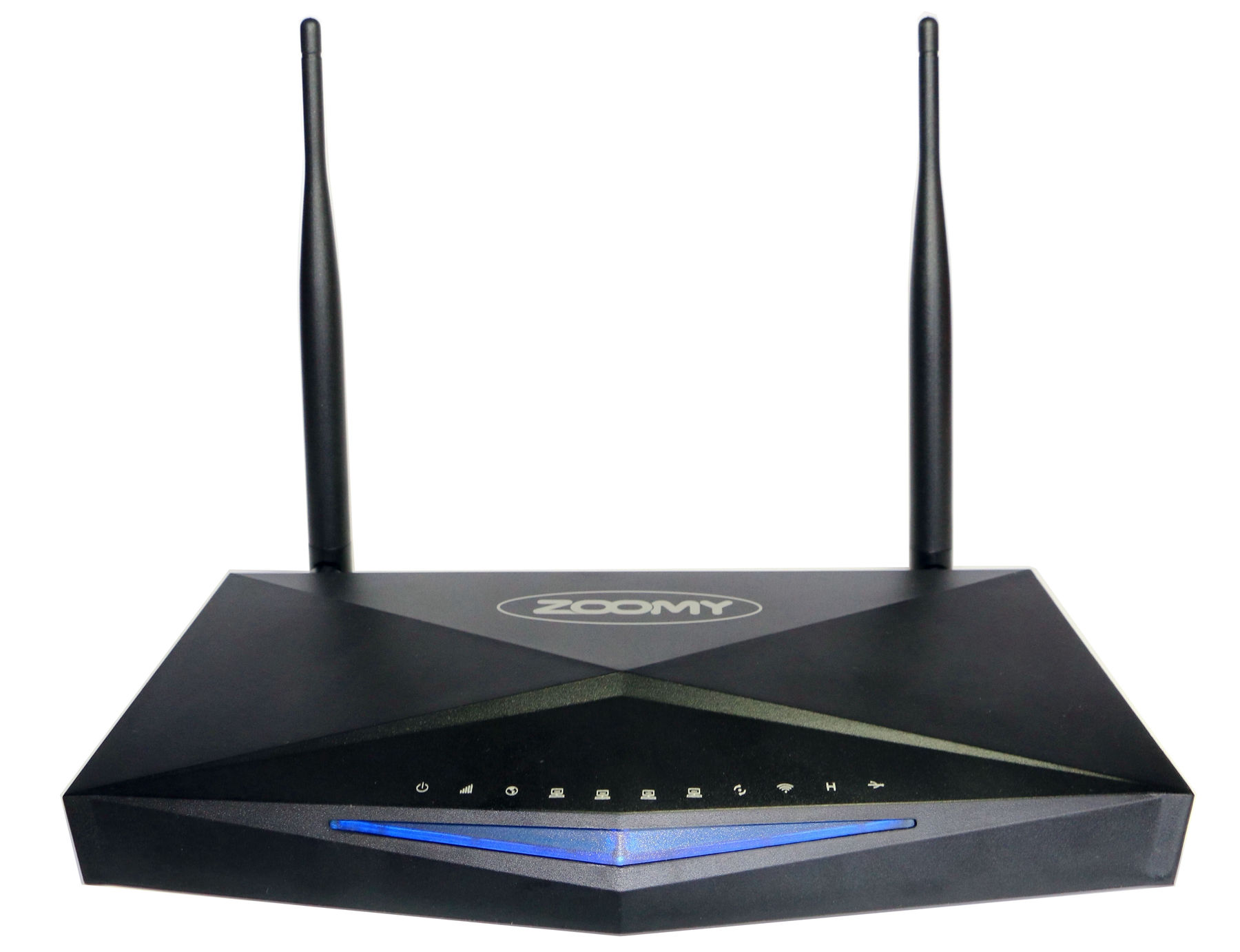

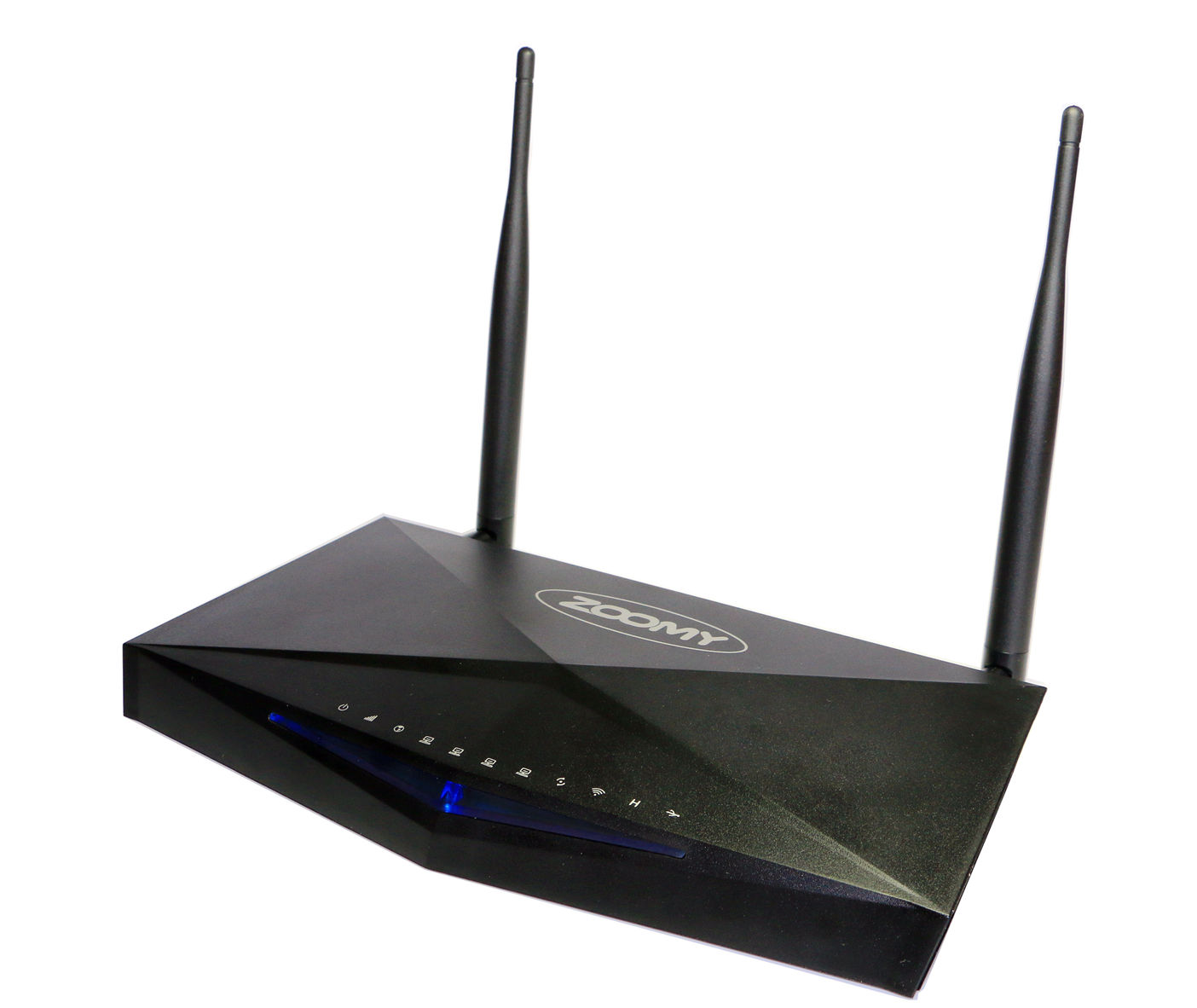

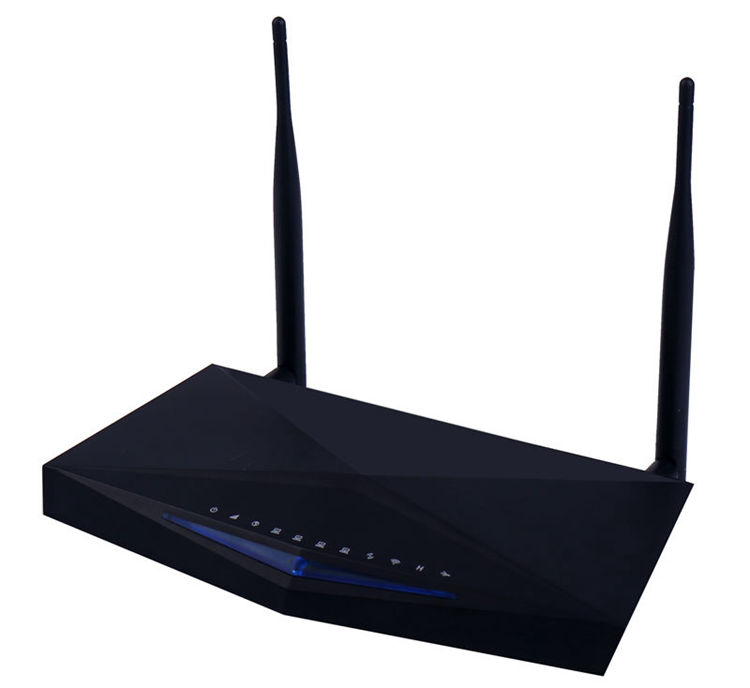

1.1   Introduction

LTE router could connect to computer both by 4 Ethernet Ports and Wireless. And it also implements Voice call function by 1 RJ11 port.

It is an ideal device for broadband wireless access. And could support IEEE 802.11b/g/n, Users could enjoy high speed steadily. In security, it supports all of the Wireless Transfers Encrypt Protocol.

It supports voice by integrated LTE module.

It is the best  choice of telecommuting,SOHO and family.

1.2   Product Key Feature

1.      Support IEEE 802.11b/g/n

2.      Strong local network router with features of DHCP, DNS and NAT/NAPT

3.      Routing from WAN to LAN

4.      Basic Gateway features such as NAT, DHCP, and DNS. Etc, to provide the capability to construct private network.

5.      Firewall

6.      Support VPN and path through

7.      Support 802.1x

8.      Support SPI

9.      IP filter, IP forwarding, IP QoS

10.   Web-based GUI

11.   Support LTE

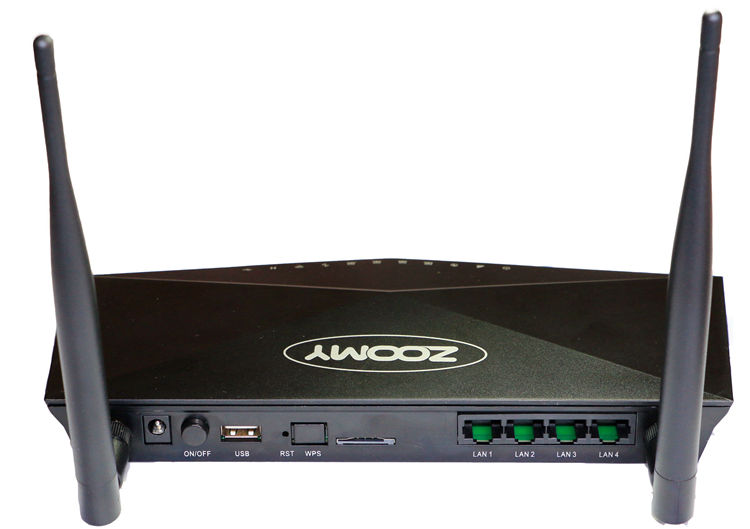

Hardware Interfaces

Four RJ-45 ports for 10/100 Base-T Ethernet LAN connection to PC or Ethernet WAN  port (configuration by software)

1 LTE external main-antenna , 1 LTE internal sub-antenna

Wi-Fi  internal antenna

One RJ11 ports for  connecting   to normal desk phone

One Reset button to default setting

One Power jack

One Power switch

One WPS button

One S(U)IM card slot

One USB Port. For Upgrade the module software

 Main Chipset Information
