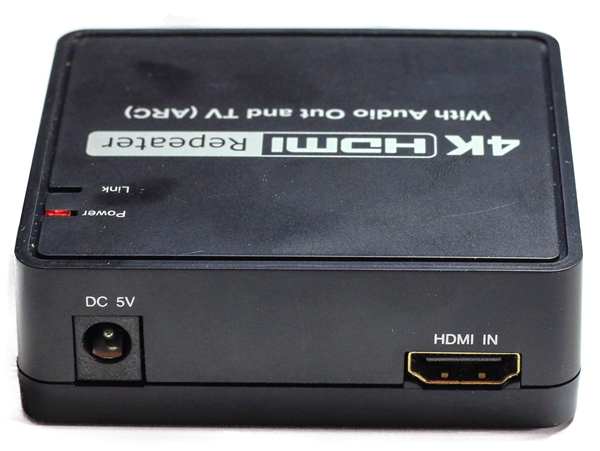

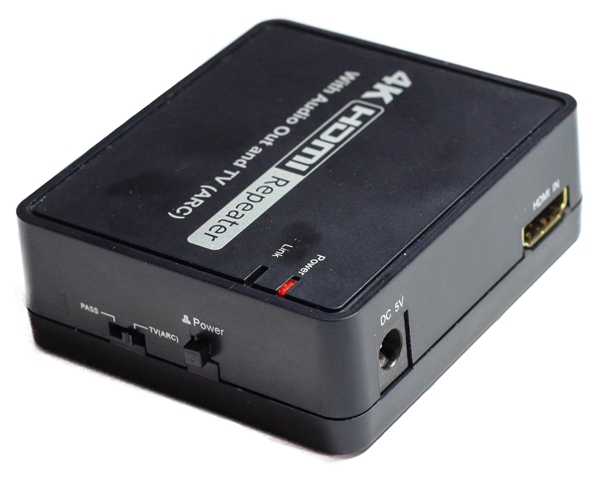

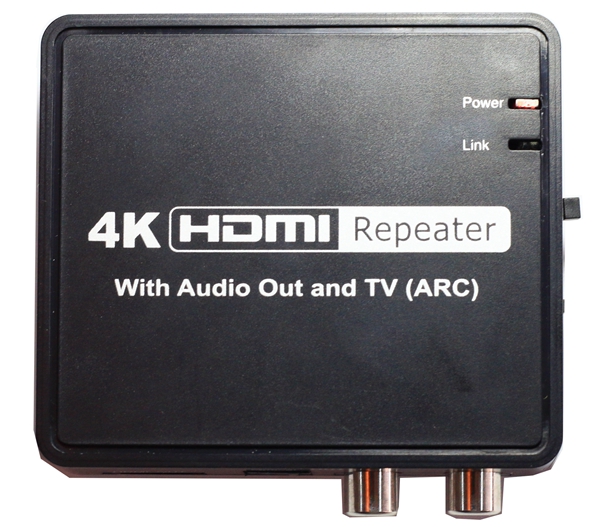

HDMI Audio Extractor Optical

    • HDMI Audio Extractor Optical
    • HDMI Audio Extractor Optical
    • HDMI Audio Extractor Optical
    • HDMI Audio Extractor Optical
Detailed Product Description

ViewHD HDMI Audio Extractor | Optical Toslink + L/R Stereo Analog Converter Outputs | VHD-H2HSAs | Support Amazon Fire TV

Technical Details

·         HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i

·         Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

Product Description

The ViewHD audio extractor supports Amazon FireTV, Roku, etc. Please make sure the AV receiver can support the specified audio formats to have sound.

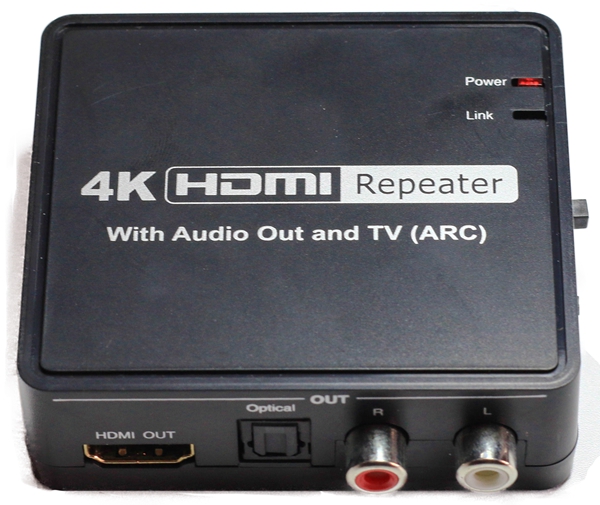

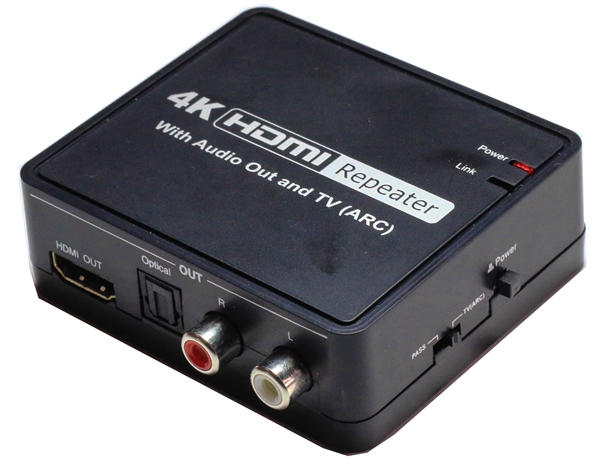

This ViewHD HDMI extractor has one HDMI input, one HDMI output, one SPDIF output and RCA L / R stereo audio output.

It can extract digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output. The RCA L/R output will not have sound if the incoming audio is multi-channel audio (>2CH). Set EDID switch to 2CH for RCA L/T stereo application.

The SPDIF optical audio output supports all audio formats up to 5.1CH Dolby Digital 5.1CH / AC3, DTS 5.1CH AND Dolby Digital Plus "DD+" formats. TOSLINK optical audio output does not support higher formats, such as HD audio (Dolby TrueHD, DTS-HD Master Audio, PCM5.1 and beyond).

The HDMI output has identical video and audio signals as the A/V signals coming into its HDMI input.

Package includes:
Audio Extractor, Universal 100V - 240V Power Adapter with US plug & User Manual.

Set audio EDID to 5.1CH for DD5.1CH / DTS5.1CH, use optical output to connect to audio receiver for surround sound.

HDMI output supports all formats including PCM5.1CH and beyond.

For 5.1CH PCM or above, set audio EDID to pass, connect HD
MI output to receiver directly.

If no video, do: 1) power up the TV, 2) power up this extractor, 3) Power reset the HDMI source unit.

Similar Products with additional features for Consideration:

1.   Product descriptions:

HDMI audio separator is a device, which can separate the audio from HDMI input signal source and convert into the optical port and analog L/R stereo RCA audio output, it supports the device with the standard HDMI output port.


2.   Product features:

1.   Support 1 HDMI(DVI) input, the highest resolution up to full UHD 2160P@30HZ and 3D video

2.   Support 1 HDMI(DVI) output, the highest resolution up to full 2160P@30HZ and 3D video

3.   Support 1 optical (Bitstream) port output.

4.   Support 1L.R stereo RCA analog audio output.

5.   Support hot plug, plug and play, without installing any software.

6.   Support HDMI 1.4V, HDCP 1.4 and DVI 1.0.

7.   Support Pixel clock frequency with the bandwidth up to 300MHZ.

8.   Support the HDMI sampling rate up to 192KHZ.

9.   Support the optical sampling up to 48KHZ.

10.  Support Standard Audio, DSD Audio and HD(HBR) Audio.


3.   Product parameters:

1.   Input Voltage: DC5V;

2.   The minimum current: ≥350mA;

3.   Power consumption: ≥ 1.75W;

4.   Working temperature: -15 to -40;

5.   Working humidity: 5 to 90% (Non-condensing);

6.   Gross weight: 136g;


4.   Parts list:

Host machine x1    User manual x1     Power adapter x1



5.   Connector description:

Connecting Schematic:


6.   Operating Notes:

1.   Please follow the connecting schematic to connect the input and output devices;

2.   Working voltage is 5V, the machine will be damaged exceed this voltage;

3.   Do not plug and pull out the HDMI cable when charged.
