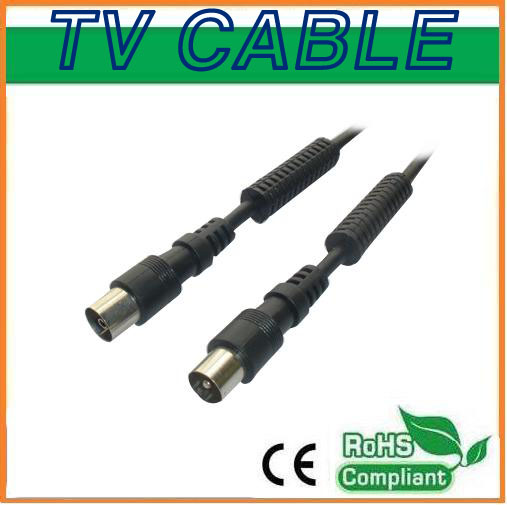

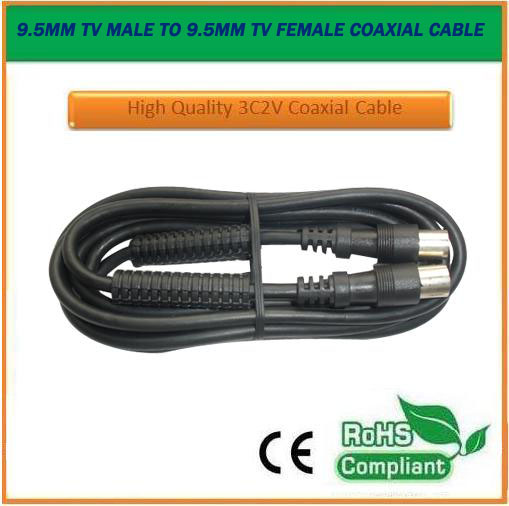

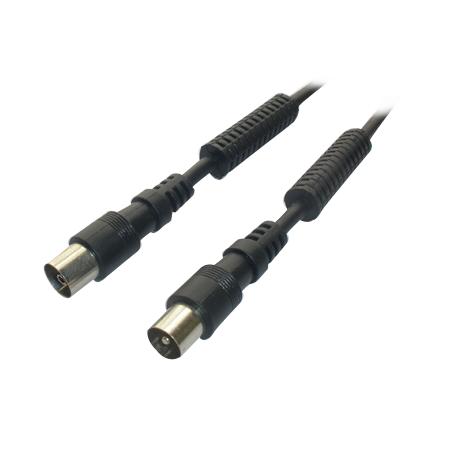

9.5MM TV CABLE

    • 9.5MM TV CABLE
    • 9.5MM TV CABLE
    • 9.5MM TV CABLE
Detailed Product Description

Application

This type of connector is commonly used for TV and antenna.

Product performance:

1.9.5mm TV connector: Nickel/Gold plated , copper, full shielded

2. CABLE: 3C2V cable, black/white color, braid: 64AL-Mg

3. Fully Shielded to prevent EMI/RFI interference

4. Contact Resistance: 30m Ohms Max

5.Voltage rating: AC/DV 125V

6.Current rating: AC/DV 1A

7.Withstanding Voltage: AC 250V/1 Min

8.Insulation resistance: 100M Ohms Min

9.Working Temperature: -25° ~+85°

10. Impedance @200MHz: 75± 3 Ohm.
